Filtry strzykawkowe Acrodisc MS z membraną wwPTFE

Ochrona kolumn i aparatury przed cząstkami stałymi.

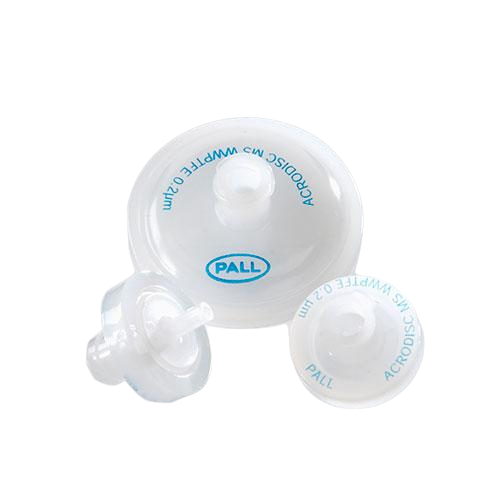

Acrodisc™ MS syringe filter, a Pall Life Sciences product, is certified for use with LCMS.

LCMS (Liquid Chromatography Mass Spectrometry) certified – Minimize interference in your LCMS results with the Acrodisc MS syringe filter. The first LCMS certified filter with extremely low levels of extractables.
Low ion suppression/enhancement – Reduce the need for retesting. The Acrodisc MS syringe filters will not contribute extractables that will interfere with the ionization process, which is the heart of the LCMS technique.
Protective packaging design – Save money and prevent downtime due to accidental contamination. Acrodisc MS syringe filters are packaged into separate tubes to protect them from external sources of extractables. While one tube is in use, the others are kept sealed.
Excellent chemical resistance – Use this universal filter for all your LCMS samples. The WWPTFE (water wettable polytetrafluoroethylene) membrane can be used with both organic and aqueous solvents. When coupled with a polyethylene housing, the membrane offers excellent chemical resistance.
Low protein binding – Get accurate and confident quantitative results. There is minimal protein adsorption with the Acrodisc MS syringe filters.

Particulate retention – Using Acrodisc MS syringe filters will protect your columns and instrument from particulate build-up, making your columns last longer and your LCMS perform more consistently.

To ensure low levels of extractables, it is certified that all lots of WWPTFE membrane used in the Acrodisc MS syringe filters have been tested according to established LCMS techniques. Each box of product comes with a certificate containing Total Ion Current (TIC) chromatograms that show all detected peaks relative to an Internal Standard. Results for integrity, burst, and flow rate tests are also included on the certificate.

Low Ion Suppression/Enhancement

Undesirable extractables can interfere with the ionization of target analytes and lead to either ion enhancement or ion suppression. In the case of ion enhancement, a higher signal is detected and may lead to false-positive results. With ion suppression, extractables inhibit the ionization of target analytes and cause reduced MS detection efficiency. Both of these phenomena affect qualitative and quantitative analyses. The Acrodisc MS syringe filter minimizes the risk of ion suppression/enhancement resulting in more reliable and accurate results.

The Acrodisc MS syringe filters are packaged in special low extractable tubes that contain 10 filters each. The tubes do not contribute extractables and also prevent contamination of the filters from external sources. Each tube is sealed with a cap to protect the filters until they are ready for use.
Filtry strzykawkowe Acrodisc z membraną MS
Materials of Construction
Filter Media: WWPTFE (water-wettable polytetrafluoroethylene) membrane
Housing: HDPE (high density polyethylene)

Pore Size
0.2 μm

Effective Filtration Area
13 mm: 1.0 cm2
25 mm: 3.9 cm2

Typical Sample Volume
13 mm: 10 mL
25 mm: < 150 mL

Inlet/Outlet Connections
13 mm: Female threaded luer inlet, minispike outlet
25 mm: Female threaded luer inlet, male slip luer outlet

Maximum Operating Pressure/Temperature
13 mm: 75 psi at ambient temperature (21-24°C, 70-75°F),
30 psi at 55°C (131°F)
25 mm: 60 psi at ambient temperature (21-24°C, 70-75°F),
30 psi at 55°C (131°F)

Typical Water Flow Rate
13 mm: 49 mL/min at 30 psi at ambient temperature
25 mm: 140 mL/min at 30 psi at ambient temperature

The Acrodiscs MS syringe filter has been developed specifically for LCMS sample prep applications, such as:
Molecular identification
Structural determination
Drug discovery and development
Drug testing
Environmental monitoring
Food safety monitoring
Oil composition determination
Product Product Name
MS-3201 Acrodisc MS syringe filter - 0.2 µm  25 mm  WWPTFE membrane (50/pkg)
MS-3301 Acrodisc MS syringe filter - 0.2 µm  13 mm  WWPTFE membrane (60/pkg)
