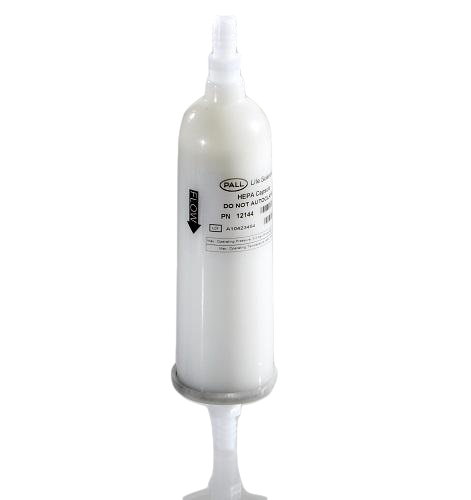

Kapsuły filtracyjne HEPA Versapor™ 1.2µm HB

Zapewnia wysoką wydajność i przepływ powietrza wolnego od cząstek stałych (HEPA).
HEPA Capsule Versapor™, a Pall Life Sciences product, feature a porous membrane that delivers high air flow rates at low differential pressure and extends filter life

Ensures particulate-free air 99.97% retention of 0.3 µm DOP aerosol


Materials of Construction
Filter Media: Versapor™ membrane (acrylic copolymer on a non-woven support)
Housing: Polypropylene
Filter Support: Polyester
Adapters: Nylon
Membrane Sealing Material: Polyurethane
Housing Sealing Material: Polypropylene-encapsulated stainless steel

Pore Size
Liquid Filtration: 1.2 μm
Air/Gas Filtration: 99.97% retention of 0.3 μm DOP aerosol

Effective Filtration Area
860 cm2

Housing Length: 19.3 cm (7.6 in.)
Overall Length: 26.9 cm (11 in.)
Diameter: 6.3 cm (2.5 in.)

Inlet/Outlet Connections
3/8 in. FNPT; includes optional hose barb fittings to accept 12.7 mm (1/2 in.) ID tubing

Maximum Operating Temperature
88°C (190°F)

Maximum Operating Pressure
3.4 bar (340 kPa, 50 psi)

Biological Safety
Passes United States Pharmacopeia (USP) Biological Reactivity Test, In Vivo <88>
Following ASTM D 2986-95A

Designed to provide bacteria-free air for sterile applications
Can be used for non-sterilizing liquid prefiltration
Kapsuły filtracyjne HEPA Versapor™ 1.2µm HB
Product Product Name Sterile Removal rating Effective filtration area Membrane material
12144 Capsule  HEPA 1.2UM Versapor 1/PK Nonsterile 1.2 µm 860 cm˛ Versapor acrylic copolymer on a nonwoven support
