Kapsuły AcroPak™ 20  z membraną Supor™

Wydajna filtracja cieczy o objętości do 2 l.

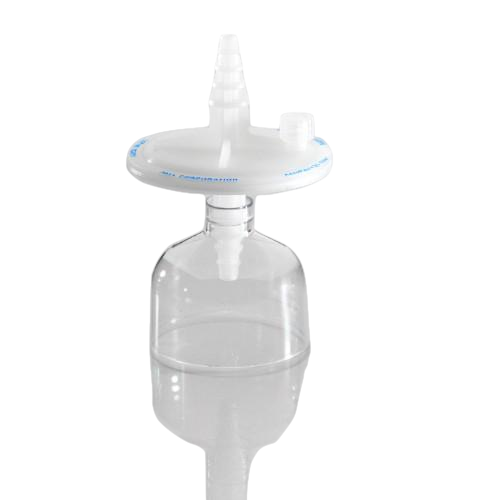

AcroPak™ 20 Filters with Supor™ membrane, a Pall Life Sciences product, deliver efficient processing of liquid volumes up to 2 L.

Supor membrane has high flow rates and throughputs, and is ideal for solutions where low protein binding is required. Not recommended for use with some ketones.
Efficiently processes up to 2 L of chemical and biological fluids.
Sterilization by gamma irradiation eliminates potential contamination by EtO residuals.
Upstream vent prevents vapor lock.
Built-in prefilter extends filter life when particulate-laden solutions such as serum-containing media are processed.

Materials of Construction
Filter Media: Supor [hydrophilic polyethersulfone (PES)] membrane
Housing, Vent Plug: Polypropylene
Sealing Technology: Thermal bonding
Filling Bell: Polycarbonate

Pore Size
0.8/0.2 μm

Effective Filtration Area
20 cm2

Housing Length: 8.3 cm (3.3 in.)
Housing Diameter: 6.7 cm (2.7 in.)

Inlet/Outlet Connections
6.4 - 12.7 mm (1/4 - 1/2 in.) diameter stepped hose barb with female luer slip interior and filling bell outlet

Typical Hold-Up Volume (with 10 psi air purge)
2.5 mL

Maximum Operating Temperature and Pressure
60°C (140°F) at 1.0 bar (100 kPa, 15 psi)
4.1 bar (410 kPa, 60 psi) at 21 - 24°C (70 - 75°F)

Recommended Integrity Test Minimum Bubble Point - Water
3.5 bar (350 kPa, 51 psi)

Typical Water Flow Rate
mL/min at 0.1 bar (10 kPa): 40 mL/min/psi: 28

Bacterial Retention
Lot samples retain a minimum of 107 cfu/cm2 of B. diminuta per modified ASTM F838, current revision

Endotoxin Level
< 0.25 EU/mL using Limulus Amoebocyte Lysate (LAL) test

Biological Safety
Passes United States Pharmacopeia (USP) Biological Reactivity Test, In Vivo <88>

Can withstand one autoclave cycle at 125°C (257°F) for 60 minutes; water wet capsule prior to autoclaving
PN 12203 is sterilized by gamma irradiation and individually packaged

Designed to add convenience to small- and medium-volume filtration (sterile and non-sterile)
Suitable for use with fluids containing dilute proteins, preservatives, or other critical components
Sterile filtration of media and buffers
Kapsuły AcroPak 20  z membraną Supor
Product Product Name Membrane material Inlet outlet connections Effective filtration area
12202 0.8/0.2 µm  non-sterile  with filling bell (3/pkg) Supor Hydrophilicpolyethersulfone Stepped Hose Barb 20 cm˛
12203 0.8/0.2 µm  gamma-irradiated  with filling bell (3/pkg) Supor Hydrophilicpolyethersulfone Stepped Hose Barb 20 cm˛
