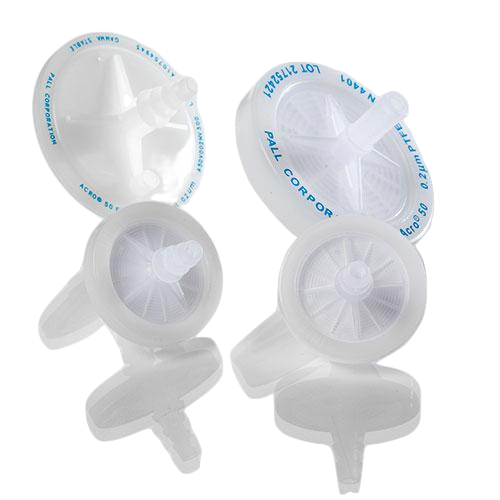

AcroVent™ In-Line Vents Device, a Pall Life Sciences product, is an economical, disposable 50 mm device for routine venting that is well suited for gas lines for CO2 incubators.
Disposable 50 mm device for routine venting
Decreases contamination risks. Ideal for gas lines for CO2 incubators.
Specifications
Materials of Construction
Filter Media: 0.2 μm PTFE on a polypropylene support
Housing: Polypropylene
Effective Filtration Area
19.6 cm2
Dimensions
Overall Length: 8.2 cm (3.2 in.)
Diameter: 7.3 cm (2.9 in.)
Inlet/Outlet Connections
Stepped hose barbs, 6.4 - 12.7 mm (1/4 - 1/2 in.) diameter
Maximum Operating Pressure
4.1 bar (410 kPa, 60 psi)
Typical Air Flow Rate
8 L/min at 0.2 bar (20 kPa, 3 psi)
Sterilization
Provided non-sterile. Autoclaving not recommended.
Applications
Can be used for routine, non-critical venting applications.
Place on fermentor exhaust outlets to prevent biohazardous gases from venting into surrounding areas.
