Kapsuły AcroPak 300 z membraną z PTFE

Kapsuły wentylacyjne do zastosowań wymagających wysokiego natężeniu przepływu powietrza.

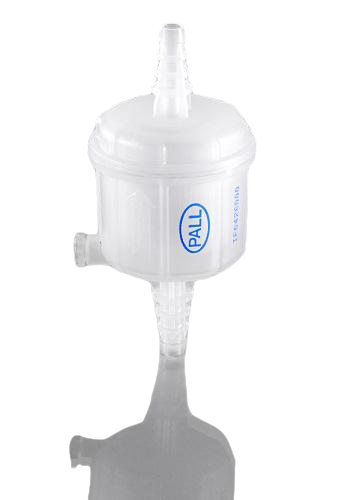

AcroPak™ 300 Capsule with PTFE membrane, a Pall Life Sciences product, are recommended for bioreactor venting requiring high air flow rates.

Offers broad chemical compatibility with PTFE membrane and polypropylene housing
100% integrity-tested to provide the high level of confidence you require

Materials of Construction
Filter Media: PTFE on a polypropylene support
Housing: Polypropylene

Effective Filtration Area
280 cm2

Length: 10.5 cm (4.1 in.) with hose barbs
Housing Diameter With Vent: 6.7 cm (2.6 in.)
Housing Diameter Without Vent: 5.3 cm (2.1 in.)

Inlet/Outlet Connections
Stepped hose barbs 6.4 - 12.7 mm (1/4 - 1/2 in.) diameter

Typical Hold-Up Volume
< 6 mL

Maximum Operating Temperature
60°C (140°F) at 2.1 bar (210 kPa, 30 psi)

Maximum Operating Pressure
4.1 bar (410 kPa, 60 psi) at ambient temperature

Recommended Integrity Test Minimum Bubble Point - 60% IPA/40% H2O (v:v)
1.2 bar (120 kPa, 18 psi)

Typical Liquid Flow Rate (1 cp)
0.8 L/min/0.1 bar (10 kPa) 0.6 L/min/psi

Typical Air Flow Rate
32 L/min/0.07 bar (7 kPa, 1 psi)

Bacterial Retention
Lot samples retain a minimum of 107 cfu/cm2 of B. diminuta per modified ASTM F838, current revision

Endotoxin Level
< 0.25 EU/mL using Limulus Amoebocyte Lysate (LAL) test

Biological Safety
Passes United States Pharmacopeia (USP) Biological Reactivity Test, In Vivo <88>

Provided non-sterile. Can withstand 10 autoclave cycles at 121 - 123°C (250 - 253°F) for a maximum of 20 min. Integrity should be verified after each autoclave cycle and before use.

Recommended for bioreactor venting requiring high air flow rates
Useful device for chemical and solvent filtration.
Kapsuły AcroPak 300 z membraną z PTFE
Product Product Name Effective filtration area Pore size Connections
12082 Capsule  AcroPak 300 0.2UM PTFE 3/PK 280 cm˛ 0 2 Stepped Hose Barb
12085 Capsule  AcroPak 300 0.2UM PTFE 100/PK 280 cm˛ 0 2 Stepped Hose Barb
