Kapsuły Acro 50 z membraną Emflon II

Jednorazowe, niesterylne kapsuły o średnicy 50 mm - idealne do zastosowań związanych z powietrzem lub gazami oraz do odpowietrzania bioreaktorów, zbiorników fermentacyjnych i kadzi.

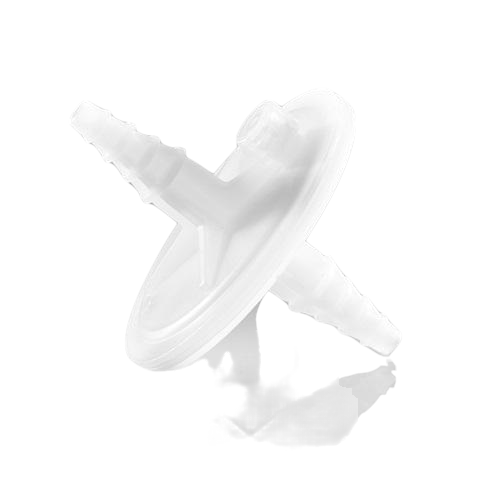

Acro™ 50 vent devices with Emflon™ II membrane, a Pall Life Sciences product, with a proprietary, low pressure drop hydrophobic PVDF membrane, are well suited for use in air/gas and vent applications.

Emflon II membrane filters have a removal rating of 0.2 μm in liquid service and less than 0.02 μm particulate for air/gas applications.
Connects easily to hoses of various sizes in-line or as a final filter.
Light weight (< 27 grams) prevents crimping of tubing.
Stable with gamma irradiation.
Excellent for disposable systems. Eliminates cleaning validation.

Materials of Construction
Filter Media: Emflon II membrane (hydrophobic PVDF)
Housing: Polypropylene

Effective Filtration Area
20 cm2

Inlet/Outlet Connections
Stepped hose barbs, 6.4 - 12.7 mm (1/4 - 1/2 in.) diameter with slip luer ID in the hose barb

Maximum Operating Temperature
60°C (140°F)

Maximum Operating Pressure
4.1 bar (410 kPa, 60 psi) at ambient temperature

Recommended Integrity Test Minimum Bubble Point - 60% IPA/40% Water (v:v)
1.1 bar (110 kPa, 16 psi)

Typical Air Flow Rate
27 L/min at 1.0 bar (100 kPa, 15 psi)

Endotoxin Level
< 0.25 EU/mL using Limulus Amoebocyte Lysate (LAL) test

Biological Safety
Passes United States Pharmacopeia (USP) Biological Reactivity Test, In Vivo <88>

Bacterial Retention
Lot samples retain a minimum of 107 cfu/cm2 of B. diminuta per modified ASTM F838, current revision

Provided non-sterile. Stable with gamma irradiation up to 50 kilogray. Can be sterilized by autoclaving at 121°C (250°F) for 20 min. Maximum autoclave stability, three cycles at 131°C (268°F) for 30 min.

Venting of bioreactors, fermentation tanks, and carboys
Gas purging of culture vessels
Ideal for attachment to disposable systems that need to undergo gamma irradiation
Kapsuły Acro 50 z membraną Emflon II
Product Product Name Pore size - removal rating Effective filtration area Connections
A50V002P2 VENT  ACRO 50 0.2UM EMFLON II  PVDF 3/PK 0.2 µm 20 cm˛ Stepped Hose Barb
A50V002P2NV VENT  ACRO 50 0.2 EMFLON II  PVDF 100/PK 0.2 µm 20 cm˛
