Lejki filtracyjne MicroFunnel Plus
Lejek filtracyjny połączony z pojemnikiem na próbki, zwiększona ochrona przed zanieczyszczeniem.

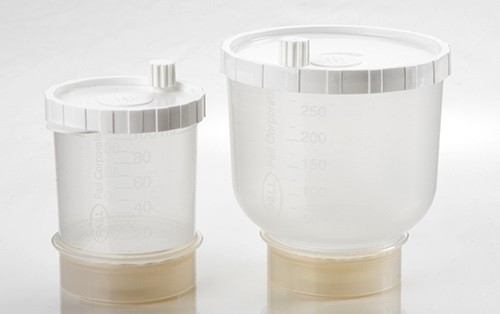

Microfunnel™ Plus filter funnels, a Pall Life Sciences product, are convenient, ready-to-use disposable filter funnels featuring increased protection from contamination for use in quality control analysis of aqueous fluids.

Product performs as sample container and filter funnel all in one. No need to transfer sample from cup to disposable funnel and risk introducing contamination.
MicroFunnel Plus AP unit allows aseptic collection of the sample through the lid sample port. No need to remove lid.
MicroFunnel Plus products with Supor™ membrane are designed to allow sampling of hot water up to 90°C.
Vented lid snaps to a liquid-tight seal and allows filtration without having to open the funnel and risk introducing contamination.
Vent filter ensures no airborne contamination is drawn into the funnel during filtration.
Attaches directly to a standard laboratory manifold or use with adapter and stopper.
Volume graduations are clearly marked for ease in measuring your sample volume.
Individually bagged and labeled for contamination control and lot traceability.
Lejki filtracyjne MicroFunnel Plus
Materials of Construction
Filter Media: GN-6 Metricel™ (mixed cellulose esters), Supor™(hydrophilic polyethersulfone), and Metricel™ Black (modified polyethersulfone) membranes
Support Pad: Cellulose
Funnel and Base: Polypropylene
Adhesive Gasket: Urethane
Funnel Cover: Polyethylene with hydrophobic Versapor™ membrane (acrylic copolymer on a non-woven support)
Bag: Polyethylene
Adapter: Polyethylene
Plug: Polyethylene (PN 4807, 4808)

Effective Filtration Area
13.46 cm2

Dimensions
100 mL Funnel
Height: 7.6 cm (3.0 in.) with cover
Diameter: 6.1 cm (2.4 in.) with cover
300 mL Funnel
Height: 8.9 cm (3.5 in.)
Diameter: 8.7 cm (3.4 in.)

Maximum Vacuum
63.5 cm Hg (25 in. Hg) (vacuum use only)

Maximum Sample Collection Temperature
PN 4807, 4808, 4829: Ambient
PN 4809, 4814, 4823, 4843, and 4844: 90°C (194°F)

Gamma-Irradiated
Validated dose 15 - 30 kGy

New Improved Packaging
No mistakes—clearly labeled
Easy to peal—hermetically sealed
Secure during shipment—thermoform pack

Applications
Improves the efficiency of monitoring your water system while reducing the introduction of contamination.
Eliminates steps in sample collection and testing that could potentially contaminate your sample.
Gridded 0.45 μm GN-6 Metricel™ membrane is ideal for analysis of ambient water by Membrane Filter (MF) Technique.
MicroFunnel Plus with 0.45 or 0.2 μm Supor™ membrane is designed for sampling hot water (such as that found in hot loop WFI systems).
Nr kat. Opis produktu Pojemność Pory Membrana Kolor
4808 MicroFunnel Plus with Metricel black MCE membrane, 100 ml, 0,45 um, black, gridded, gamma-irradiated, Individually bagged (pack of 50) 100 ml 0,45 um PES Black
4825 Accessory - Funnel holder for collecting hot water samples, 300 ml (qty of 1) - - - -
4844 MicroFunnel Plus with Aseptic Port (AP) and Supor PES membrane, 100 ml, 0,45 um, white, gridded, gamma-irradiated, Individually bagged (pack of 50) 100 ml 0,45 um PES White
4813 MicroFunnel Plus with Supor PES membrane, 300 ml, 0,2 um, white, gridded, gamma-irradiated, individually bagged (pack of 20) 300 ml 0,2 um PES White
4845 Accessory - Aseptic Port (AP) sampling tubes, individually bagged (pack of 50) - - - -
4855 MicroFunnel Plus filter funnel with Aseptic port (AP) and Supor membrane, 300 ml, 0,45 um, White, Gridded, Gamma-irradiated, individually bagged (pack of 20) 300 ml 0,45 um PES White
4807ME MicroFunnel Plus with ME25 MCE memnbrane, 100 ml, 0,45 um, white, gridded, gamma-irradiated, Individually bagged (pack of 50) 100 ml 0,45 um MCE White
4829ME MicroFunnel Plus with ME25 MCE membrane, 300 ml, 0,45 um, white, gridded, gamma-irradiated, Individually bagged (pack of 20) 300 ml 0,45 um MCE White
4857 MicroFunnel Plus for Sanitary transfer (ST) with Supor PES membrane, 300 ml, 0,2 um, white, gridded, individually bagged with overpack bags (pack of 20) 300 ml 0,2 um PES White
4824 Accessory - Funnel holder for collecting hot water samples, 100 ml (qty of 1) - - - -
4809 MicroFunnel Plus with Supor PES membrane, 100 ml, 0,2 um, white, gridded, gamma-irradiated, Individually bagged (pack of 50) 100 ml 0,2 um PES White
4895 Accessory - Filter funnel culture-in-place lid and base plug kit (pack of 20) - - - -
4814 MicroFunnel Plus with Supor PES membrane, 300 ml, 0,45 um, white, gridded, gamma-irradiated, Individually bagged (pack of 20) 300 ml 0,45 um PES White
4823 MicroFunnel Plus with Supor PES membrane, 100 ml, 0,45 um, white, gridded, gamma-irradiated, Individually bagged (pack of 50) 100 ml 0,45 um PES White
