Oprawy aluminiowe in-line do membran 47 mm
Lekkie oprawy do filtrów z anodyzowanego aluminium.

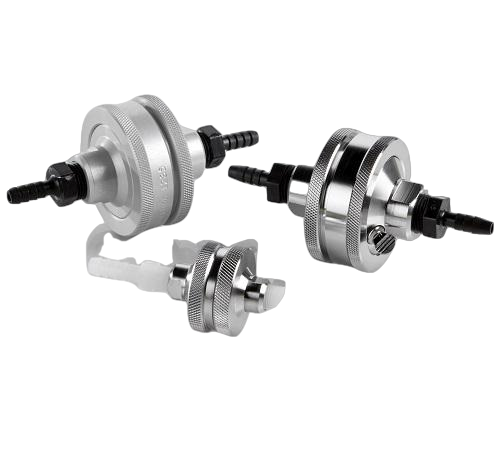

47 mm in-line filter holder, a Pall Life Sciences product, is a lightweight, anodized aluminum filter holder with a convenient design that allows opening and closing without disrupting membrane.
Oprawy aluminiowe in-line do membran 47 mm
Specifications
Materials of Construction
Inlet-Cover, Base, and Collar Cap: Anodized aluminum
Hose Barb Adapters: Polyethylene
Support Screen and Underdrain Disc: Electropolished type 316 stainless steel
O-Ring: Viton◆
Thrust Ring: PTFE

Effective Filtration Area
9.6 cm2

Dimensions
Overall Length (Excluding Hose Barbs): 5.7 cm (2.2 in.)
Diameter: 5.9 cm (2.3 in.)

Inlet/Outlet Connections
3⁄8 in. FNPT; hose barb adapters accept 6.4 mm (1⁄4 in.) ID tubing

Maximum Operating Temperature
Limited by filter type, hose barb adapters 93°C (199°F), or O-ring 204°C (399°F)

Maximum Operating Pressure
14 bar (1400 kPa, 200 psi)

Sterilization
Provided non-sterile. Autoclavable if desired at 121 - 123°C (250 - 253°F) at 1.0 bar (100 kPa, 15 psi) for 15 - 20 min .

◆Do not autoclave with aluminum foil; use autoclave paper or other permeable wrap such as Tyvek.

Applications
Designed for in-line liquid or gas filtration.
Durable construction for stack sampling.
Product Product Name Effective filtration area Connections Materials of construction Size
71242 Viton O-ring (1/pkg) 9.6 cm2 3 over in FNPT in Viton 47 mm
1235 47 mm In-Line Filter Holder 9.6 cm2 3 over in FNPT in anodized aluminum 47 mm
71243 PTFE thrust ring (1/pkg) 9.6 cm2 3 over in FNPT in PTFE 47 mm
73184 47 mm In-Line Filter Holder 9.6 cm2 3 over in FNPT in Polyethylene 47 mm
