Oprawy poliwęglanowe z membraną nylonową 47 mm
Wytrzymałe, lekkie oprawy do monitorowania cząstek stałych w gazach lub cieczach.

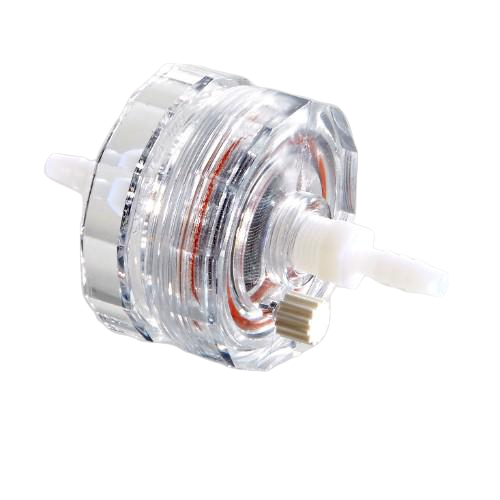

47 mm In-line Filter Holder, a Pall Life Sciences product, is a sturdy, lightweight unit for monitoring particulates in gases or liquids. Lightweight plastic construction. Locking Luer vent plug facilitates removal of air bubbles in liquid filtration.
Oprawy poliwęglanowe z membraną nylonową 47 mm
Specifications
Materials of Construction
Body: Polycarbonate
Hose Barb Adapters: Nylon
Support Screen: Polyphenylsulfone
O-Ring: Silicone
Vent Cap: Polypropylene

Effective Filtration Area
9.6 cm2

Dimensions
Overall Length (Includes Vent Cap, Excludes Hose Barb): 5.8 cm (2.3 in.)
Diameter: 6.4 cm (2.5 in.)

Inlet/Outlet Connections
1⁄4 in. -18 FNPT; hose barb adapters accept 6.4 mm (1⁄4 in.) ID tubing

Maximum Operating Temperature
Limited by filter type or by hose barb 121°C (250°F)

Maximum Operating Pressure
3.4 bar (340 kPa, 50 psi)

Sterilization
Provided non-sterile. Autoclavable if desired at 121 - 123°C (250 - 253°F) at 1.0 bar (100 kPa, 15 psi) for 15 - 20 min .

Applications
Designed for in-line liquid or gas filtration.
Indoor and outdoor air monitoring or sampling.
Ideal for venting.
Product Product Name Effective filtration area Connections Materials of construction Size
1119 47 mm  in-line polycarbonate (1/pkg) 9.6 cm2 1/4 in. -18 FNPT in Polycarbonate 47 mm
87264 Polyphenylsulfone Magnetic filter funnel Replacement Support Screen  47mm (1/pkg)
81314 Hose barb adapter  nylon  1/4 in. MNPT to 6.4 mm (1/4 in.) ID tubing (1/pkg) 9.6 cm2 1/4 in. -18 FNPT in Nylon 47 mm
86366 Silicone O-ring (1/pkg) 9.6 cm2 1/4 in. -18 FNPT in Silicone 47 mm
